12 volt 100Ah 200A high current deep cycle 12V lifepo4 iron phosphate RV Marine Camping battery pack
We can provide you:
We can provide OEM service to you,free customized your logo label.

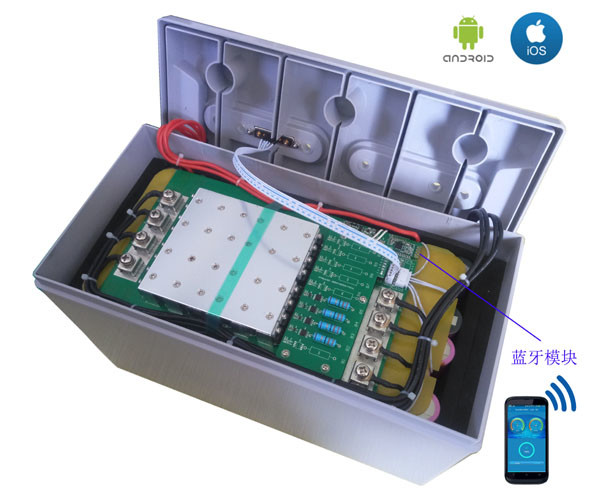

Optional Smart Bluetooth BMS,Bluetooth APP to know the status of the battery,BMS&APP are developed by ourselves.
Support custom APP with your logo.
Hot selling products 12V 10Ah to 600Ah,24V 50Ah,100Ah,200Ah,and 48V 50Ah,100Ah.
We have passed CE,MSDS,UN38.3,and SGS Quality System Certification.
Supporting in series and in parallel connection.
NO MOQ,Fast Delivery.
| ELECTRICAL SPECIFICATIONS | | MECHANICAL SPECIFICATIONS |
| Nominal Voltage | 12.8V | | Terminal Type | M8 |
| Nominal Capacity | 100Ah | | Weight | 10.5kg |
| Nominal Energy | 1280Wh | | Case Dimension(L*W*H) | 330*175*210mm |
| Internal Resistance | ≤30 @50% SOC | | Case Type | ABS |
| Capacity | @20A: 300minutes(5hours) | | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | | LCD or Bluetooth Function | Optional |
| Maximum In Series | 4PCS | | BMS:low voltage,high voltage,over temperature, |
| Maximum In Parallel | No limit | | Over current,short-circuit protection .etc |
| Discharge Current and Voltage Specifications | | Charge Current and Voltage Specifications |
| MAX Continuous Discharge Current | 200A | | Max Charge Current | 200A |
| Peak Current | 500A | | Recommended Charge Current | 20A - 50A |
| Discharge pulse current | 700±50A (31±10ms) | | End of Charge voltage | 14.4V±0.2V |
| BMS Low Voltge Cut-off | 10V | | End of discharge voltage | 10V |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | | COMPLIANCE SPECIFICATIONS |
| Discharge Temperature | -20～+65℃ | | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | | UL1642 & IEC62133 & BIS for cells |
| Storage Temperature Range | -20～+45℃ | |
| BMS High Temperature Protection | 90℃ | | Shipping classification | UN 3480 |
| Battery High Temperature Protection | 60℃ | | |
Multiple case color for optional:
BMS Specs with multiple protections to prevent cells from over charge/over discharge ,over temperature .etc .
FAQ
1. Are you factory or trade company?
This is Hedy from Leadyo which is leading Battery Manufacturer in China over 15 years
2. What is your main product?
Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
Start-stop LiFepo4 12V 200CCA-1600CCA
1-32S Lithium PCM/BMS max 250A
4NMC/LFP/LTO cells
3. How to get a quote?
Please contact with us sales engineer and get good price sales5@leadyo-battery.com/wechatwhatsapp :86 18825284421
4. When you delivery order?
Normally 7-10 days for samples order , it can be negotiated based on exact order quantity and schedule.
5. Do you accept OEM?
Yes sure, strong RD department and can customized battery according to your requirmenets
